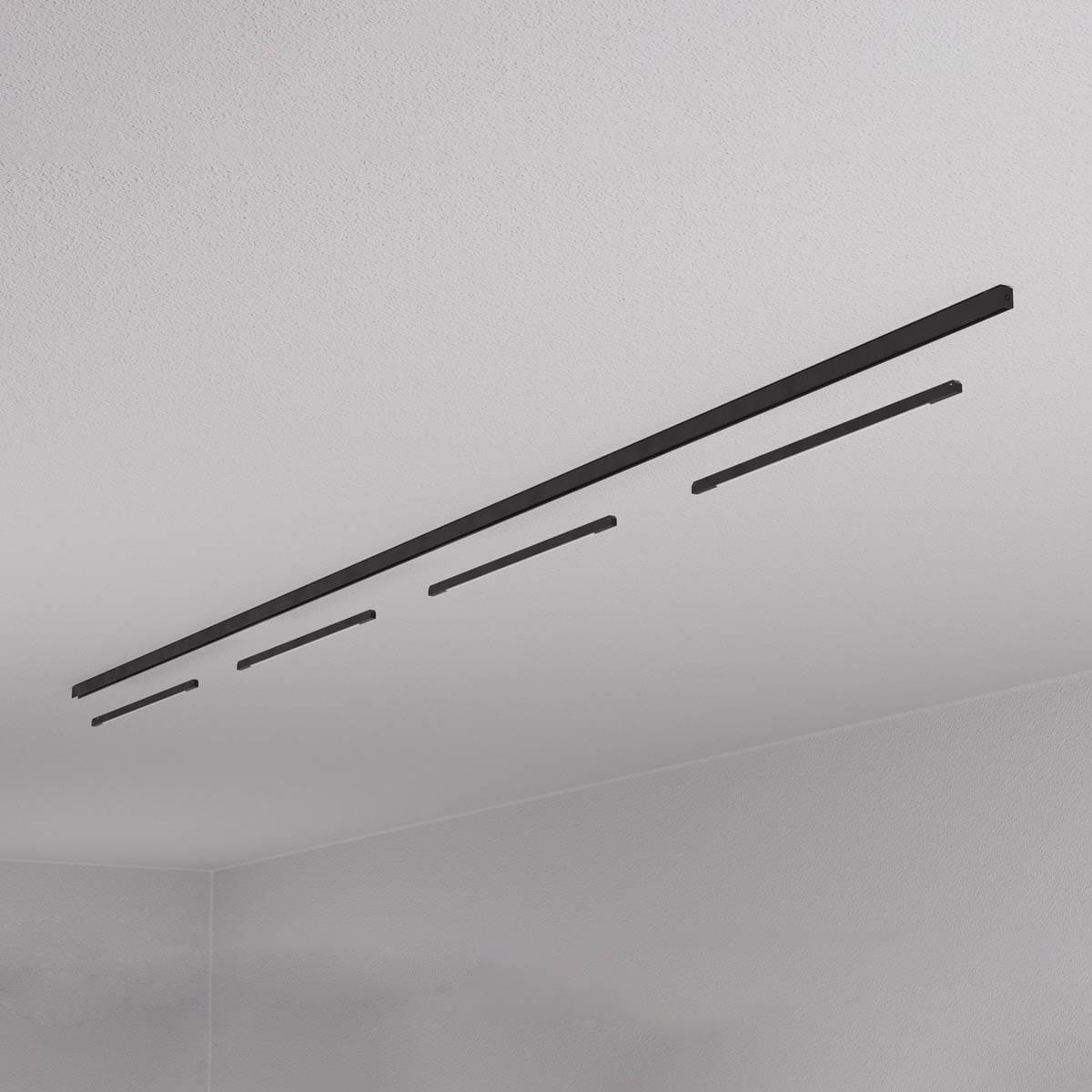

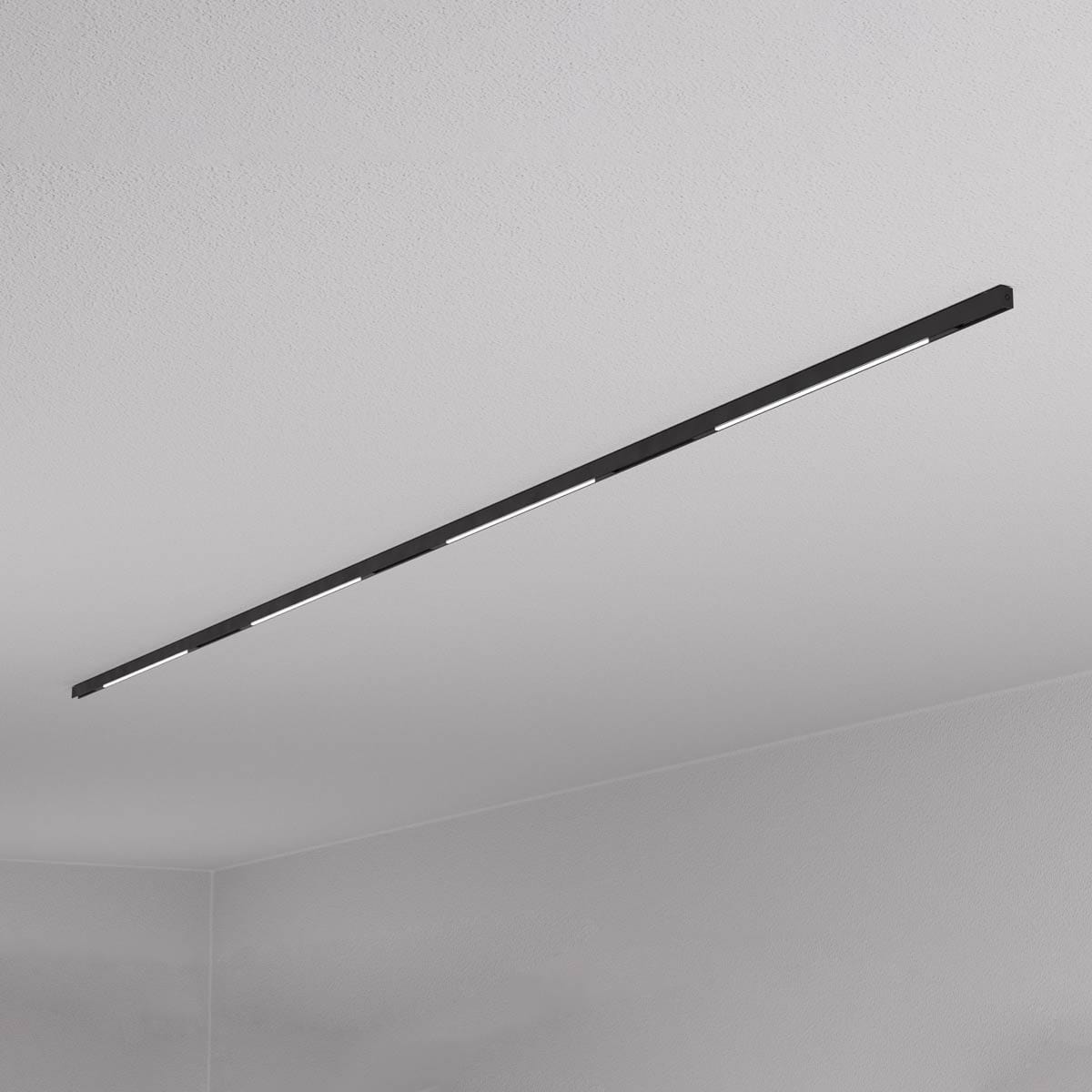

MAGMINI SURFACE TRACK SET

Introducing Magmini - an ultra slim 24V mini magnetic track system. The perfect blend of minimal design and powerful lighting to illuminate your space with style and subtlety.

The possibilities are endless with Magmini - create a custom piece today
Enquire
Add to wishlist
Print Product Data Sheet
Secure Payments
100% Australian Owned & Cultivated
Have a trade account? Connect in To Your Account!

Description

Finish: Black

Surface Track Dimensions: L: 2000mm (max) x H: 15.4mm x D: 5.8mm

Linear Specifications

  • Dimensions: L: 367mm / 667mm x H: 10mm
  • Light Source: LED Included
  • Wattage: 3W / 6W
  • Lumen: 135lm / 280lm
  • Kelvin: 3000K
  • CRI: 90
  • Beam Angle: 60˚
  • Dimmable: As per selected Driver

Spotlight 38˚ Specifications

  • Dimensions: Diam: 35mm x H: 55mm
  • Ceiling Dimensions: 57mm x H: 10.5mm
  • Light Source: LED Included
  • Wattage: 1W / 5W
  • Lumen: 74lm / 425lm
  • Kelvin: 3000K
  • CRI: 90
  • Beam Angle: 38˚
  • Dimmable: As per selected Driver

Spotlight 15˚- 45˚ Specifications

  • Dimensions: Diam: 35mm x H: 55mm
  • Ceiling Dimensions: 57mm x H: 10.5mm
  • Light Source: LED Included
  • Wattage: 5W
  • Lumen: 160lm - 15˚ / 400lm - 45˚
  • Kelvin: 3000K
  • CRI: 90
  • Beam Angle: 15˚ - 45˚
  • Dimmable: As per selected Driver

Notes:

  • This set includes:
    - MAGMINI TRIMLESS TRACK BLACK 2000mm
    - MAGMINI SINGLE BLACK POWER FEEDER UNIT
    - 4x MAGMINI TRACK LINEAR 3W or 6W or MAGMINI SPOTLIGHT 1W or 5W with Beam Angles of 38˚ or 15˚ - 45˚
    - HC - LED DRIVER 30W, 24V CONSTANT VOLTAGE
  • Suitable for mounting on ceilings or walls with length up to 2000mm and can be cut down to size or joined for longer lengths.
  • Trimless track offers solutions to compose curved profiles with 90˚ curve connectors as standard with custom solutions for 45˚ and 180˚ available for special order upon request.
  • Enquire for other customisation or configuration.
